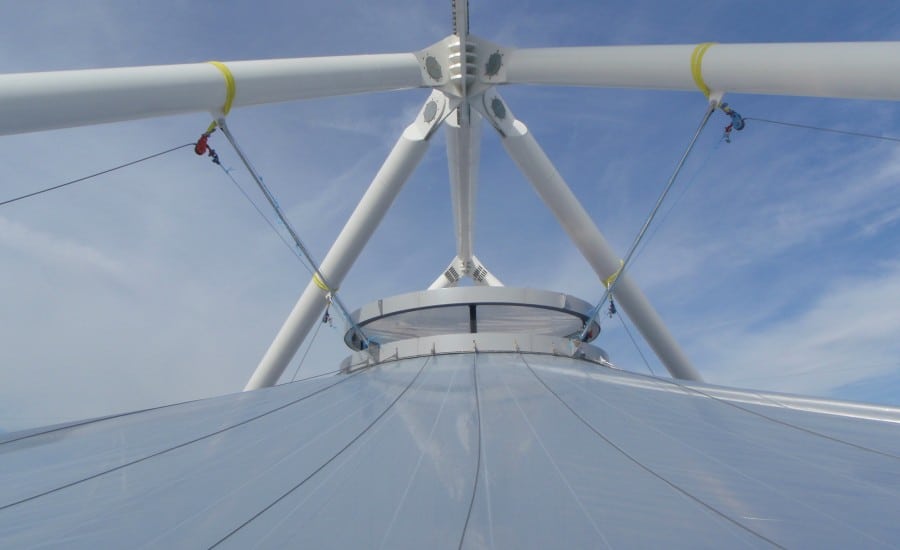

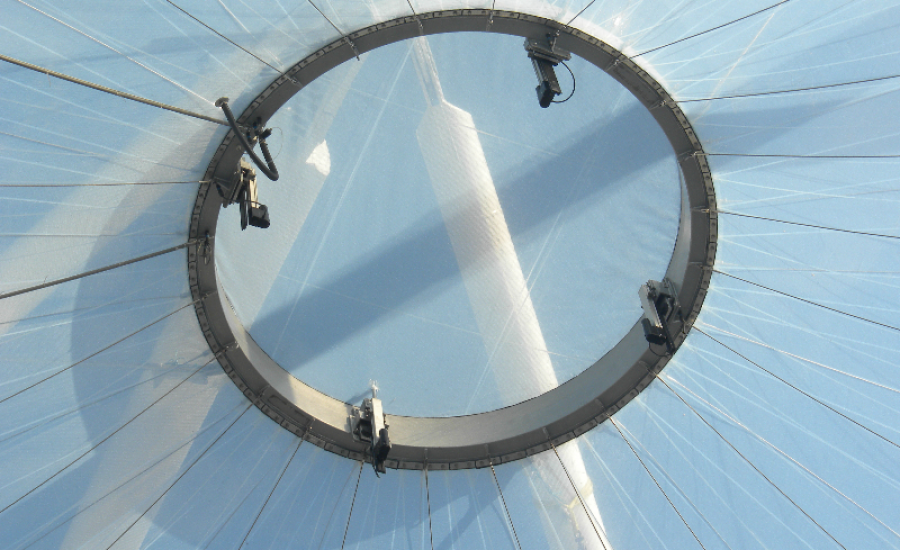

  • ETFE with actuated headring panel for Ventilation

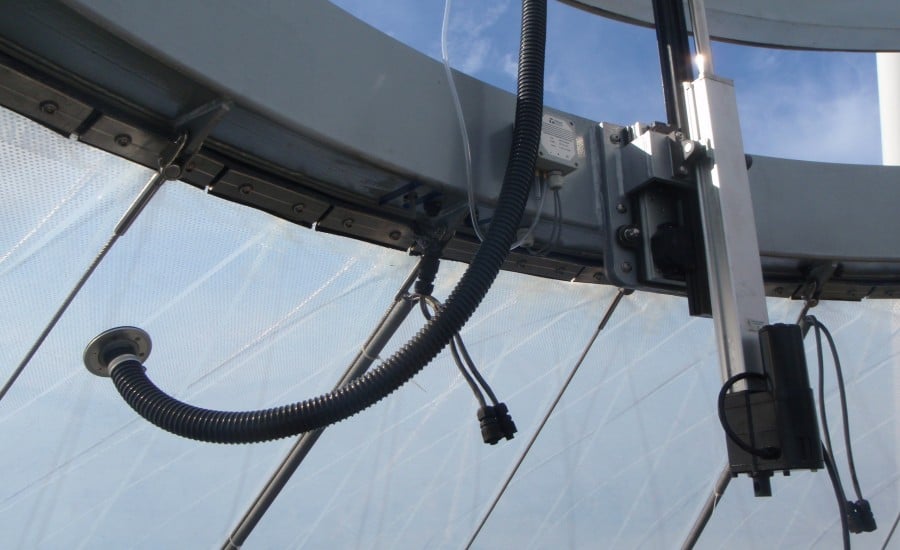

  • Close up of ETFE ventilation actuator

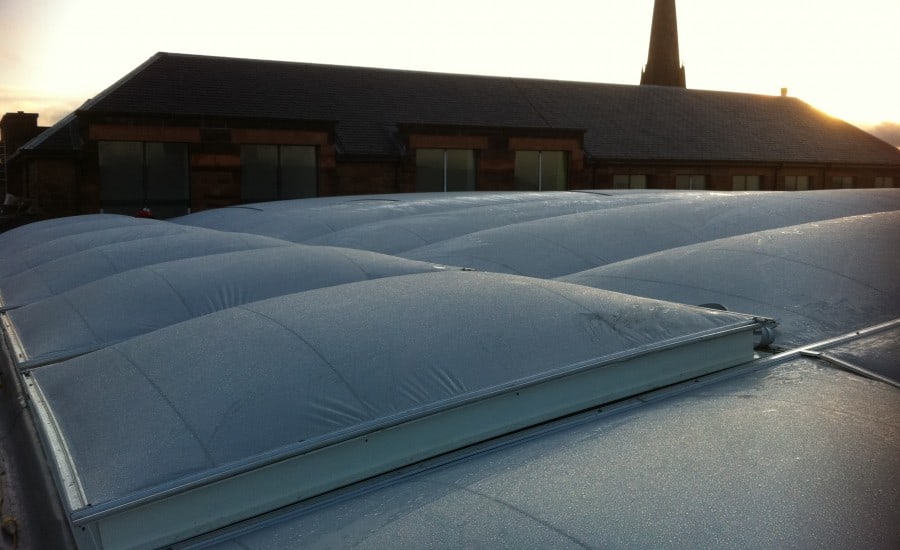

  • ETFE ventilation
  • ETFE ventilation

Fresh air for comfort.

No one likes a stuffy hot space.  One way to introduce fresh air and release heat is through Architen Ventilation. Architen Ventilation is an engineered system comprising hinged ETFE panels incorporated in the design of the ETFE system.

Actuated panels can be manually opened or sensors can be connected to the Building Management System to automatically open when heat levels get too high.

As an option, opening panels can contribute to the building’s fire strategy. In this case, this system is triggered by the fire alarm/temperature setting, which can open the hinged panels for smoke ventilation.


How to specify

Our products are easy to specify. Just drop this clause into your architectural specification or download our full H80 NBS Specification.

Product: ARCHITEN ETFE VENTILATION SYSTEM

(To be specified in conjunction with the ARCHITEN ETFE CUSHION SYSTEM)

System Manufacturer: Architen Landrell Manufacturing Limited

Size: As per architects drawings

Fabric: ETFE Foil

Functionality: Air venting system via opening panels and interface with temperature control/HVAC system linked to the BMS.

For more information on ETFE Foil, take a look at our Materials section. For bespoke projects or for additional information, our experienced team will be happy to guide you through the specification of an Architen ETFE Ventilation System.
