For tensile fabric structures where energy reduction is important.

LowE fabric is treated with a calibrated application of a metallic aluminium liquid, having it work a bit like a thermos.

In the winter, heat rises to the tensile fabric roof and then is reflected down. In the summer, it effectively increases the efficiency of the air conditioning by reflecting the cool air back into the space.

On the outside, while the fabric heats up on a sunny day, solar gain does not penetrate the fabric – keeping the space below the canopy cool.

LowE works for both permanent or temporary structures (double skin or triple skin). LowE can be calibrate to conserve a level of fabric translucency, thereby maintaining natural light into the building.

The E in LowE stands for emissivity. This relates to the ability of its surface to emit energy by radiation.




How to specify

Our products are easy to specify. Just drop this clause into your architectural specification or download our full H90 NBS Specification.

Product: ARCHITEN LOW E TENSILE FABRIC SYSTEM

System Manufacturer: Architen Landrell Manufacturing Limited

Size: As per architects drawings

Fabric: PVC Coated Polyester with Low E Coating

Internal Surface Emissivity: 0.55

For more information on the fabric options which are compatible with this system, take a look at our Materials section. For bespoke projects or additional information, our experienced team will be happy to guide you through the specification of an Architen LowE Tensile Fabric System.




Related Projects

Fabric canopy roof over football stadium

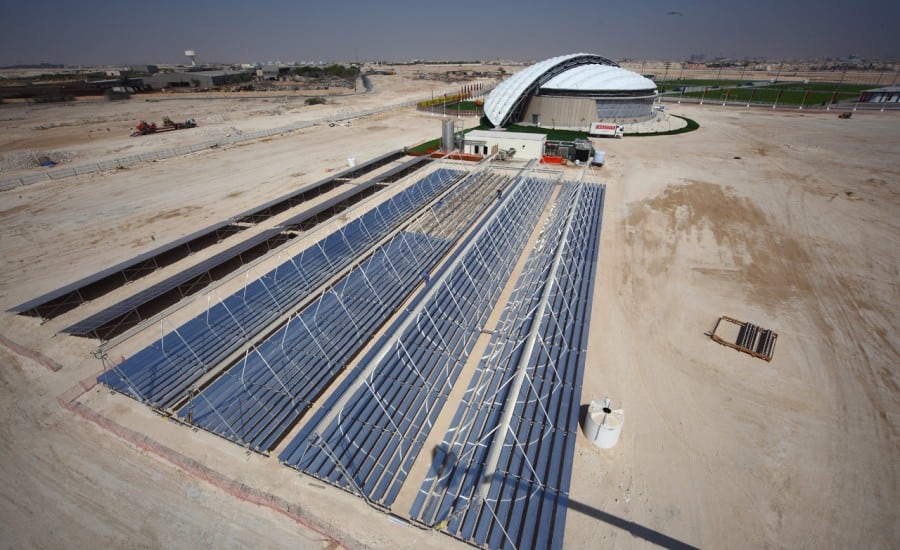

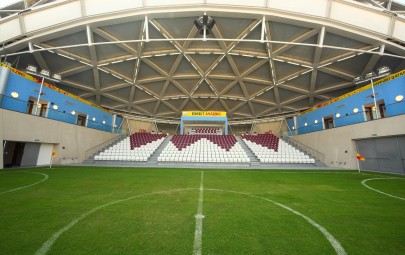

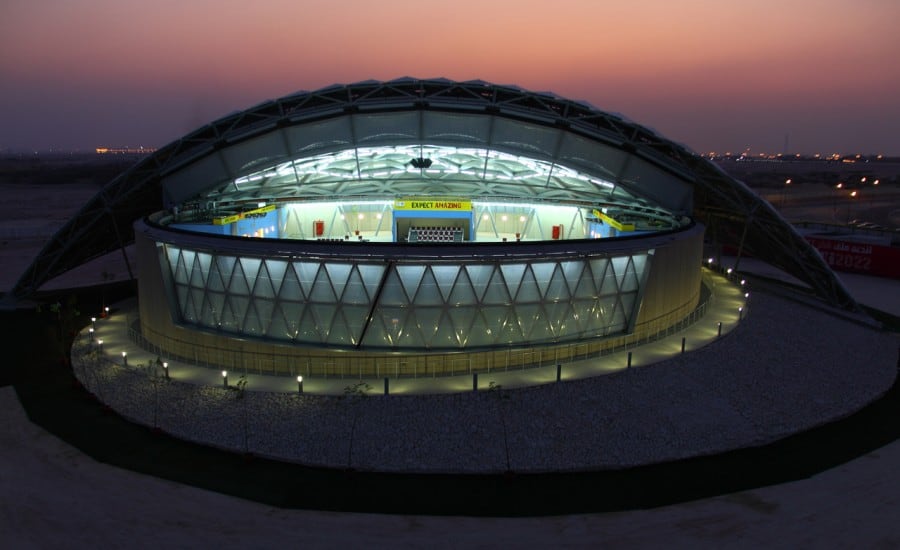

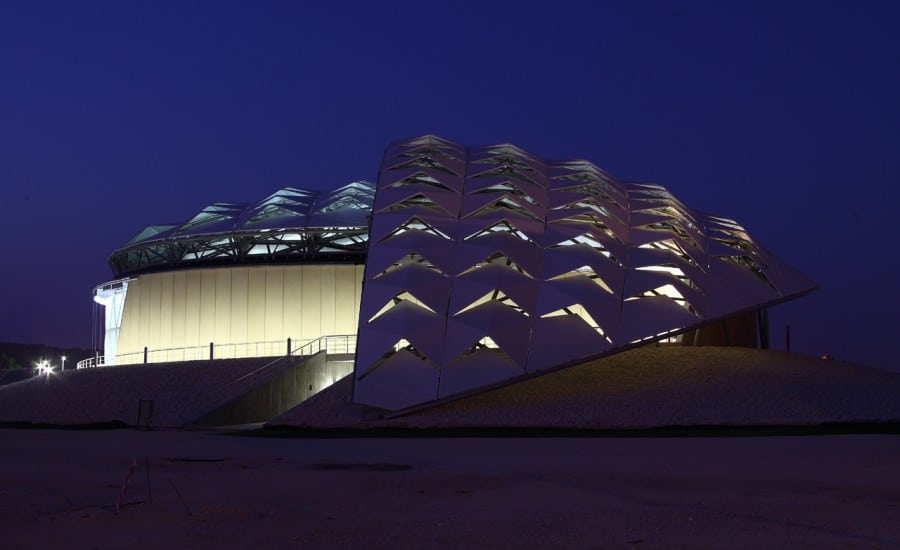

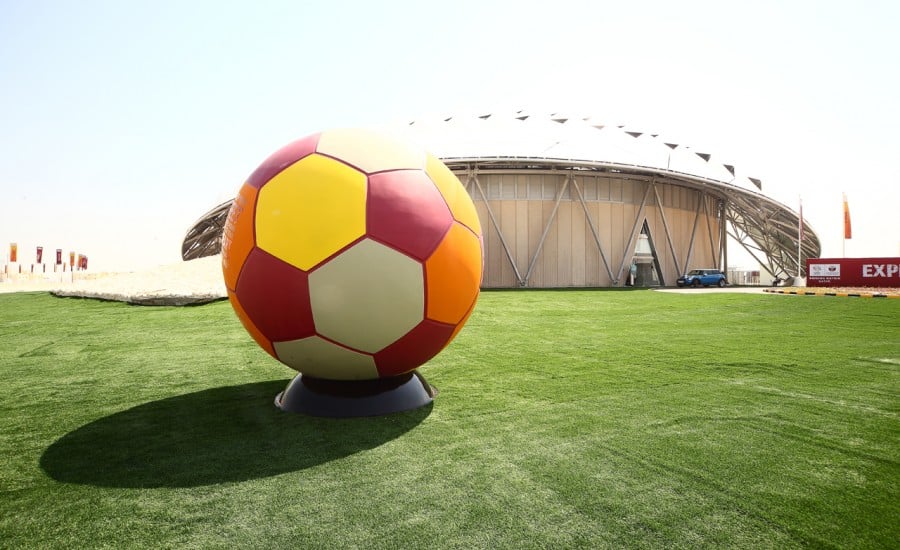

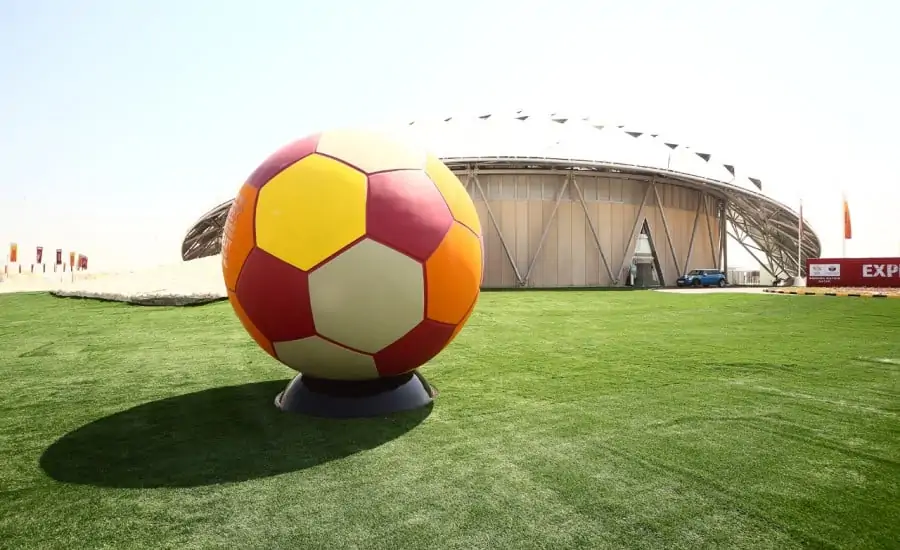

Doha Showcase 2022 Stadium

Architen Landrell was contracted to design and manufacture 238 triangular fabric hoods to cover the...
