Portfolio > McArthurGlen Designer Outlet Village

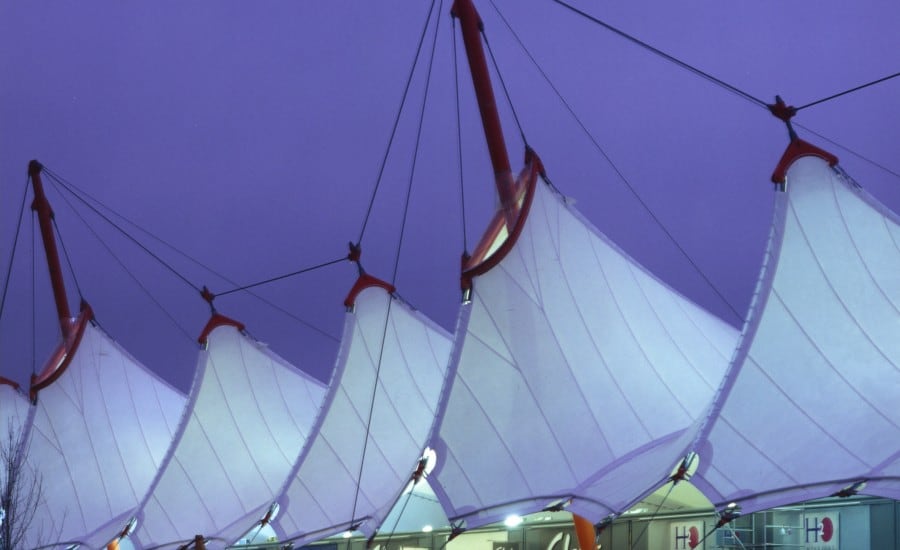

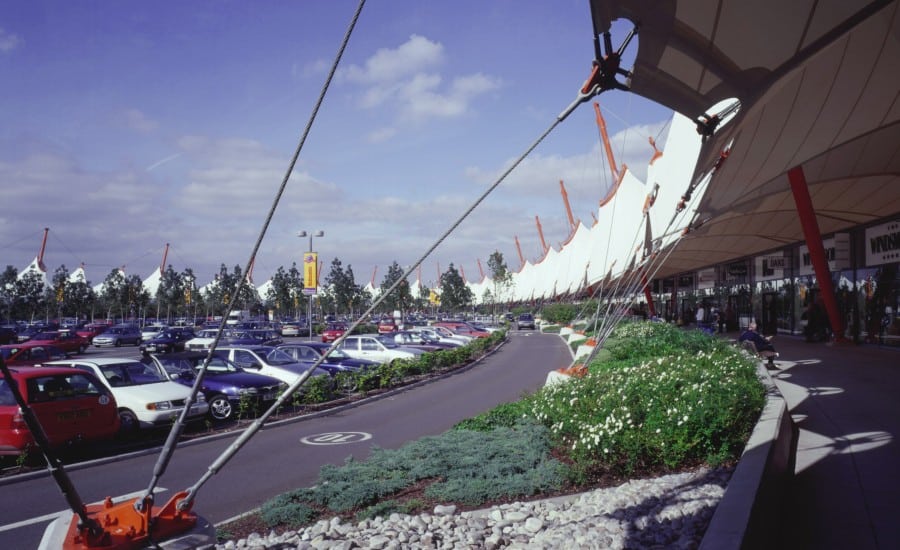

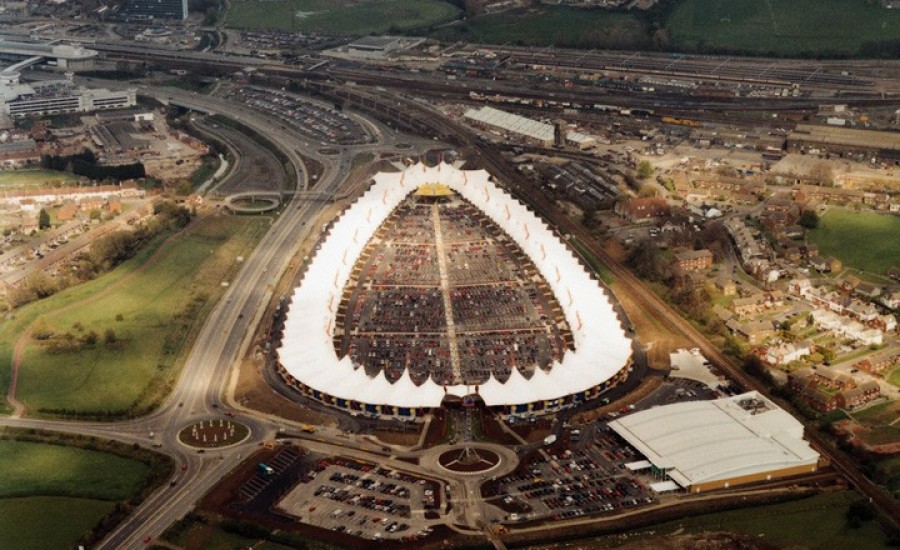

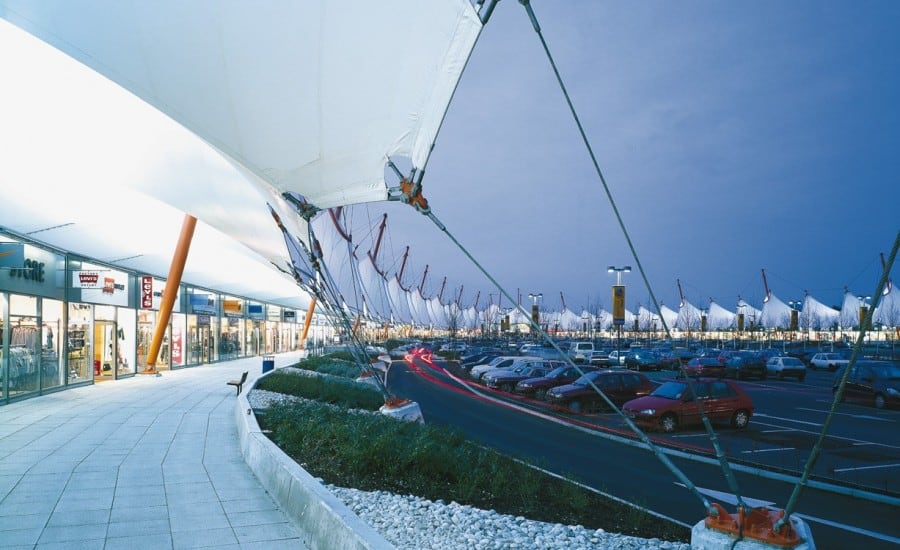

A kilometre long continuous tensile membrane roof of 35,000m2 covering retail units. The PVC Polyester fabric roof, arranged around a horseshoe plan, provides the unifying element in this Richard Rogers Partnership design. Voted RIBA Journal building of the month, April 2000, the membrane roof is an iconic structure.
The dramatic impact of the designer outlet village at Ashford is undeniable. The kilometre long-tented fabric roof is the largest continuous tensile membrane structure in the world, not to mention the most iconic. The architect, Richard Rogers, wanted to create something different, moving away from the conventional shopping experience by creating an outside shopping experience protected from the elements and unlike anything ever constructed.
Inspired by Nature:
Built on a reclaimed brown-field site, the smooth peaks and bright white fabric are a welcome addition to the rural landscape which inspired them. The dyamic shape of the canopies with its bright orange steelwork adds interest to the natural shapes and colours of the surrounding environment. The striking structure has become a landmark for the region, providing shoppers with an exciting shopping and dining experience.
Maximum Coverage & Cost Effective:
In comparison to other roofing systems, the use of a PVC coated polyester tensile membrane ensured that a large expanse could be covered for minimum cost and allowed the system to be installed quickly.
The ridge and valley structure forms the uniting part of this ambitious scheme and allows the outlet centre to stake its place dramatically in its rural setting. The undulating shapes and vertical masts juxtapose with the elongated form of the retail units below.

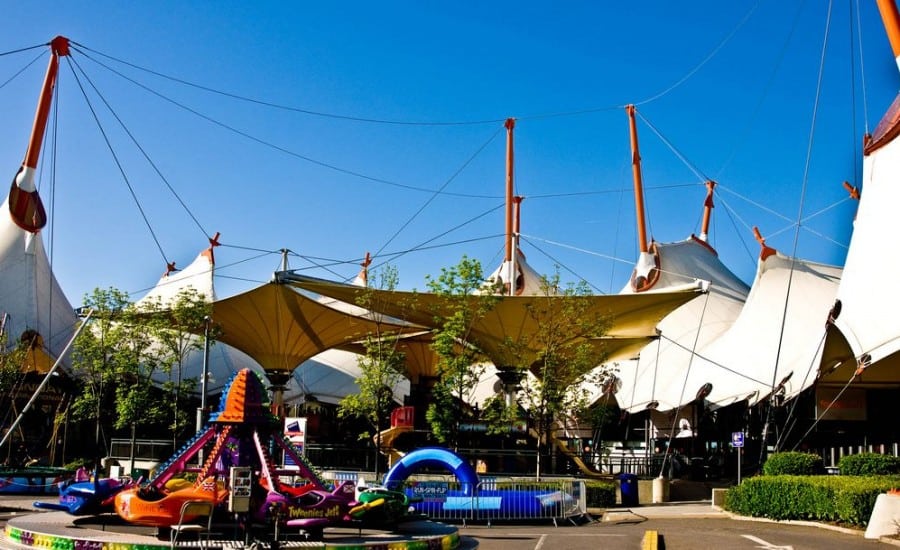

Inverted Cones:
In addition to the continues ‘conic’ style canopy are a series of Inverted Cone structures. The Inverted Cones capture rain and channel it down the steel column and away from the structure. These structures are easy to specify and offer 9m2 (each) of coverage at an economical price.
Maintenance:
Maintaining one of the largest tensile fabric structures in the UK is no easy task. 35,000 m2 of fabric requires 8 operatives working solid for about a month. A visit includes: specialist cleaning, any repairs, checking fixinngs & fittings, and an inspection report. All of this takes place over a live retail site with minimal disruption. Because our operatives are IRATA Rope Access Trained, there is no place we can’t reach.
Its long been accepted by architects and designers that the entry points in and out...
As a landmark multi-use building which encourages business innovation in sustainable construction, the iCon Building...
When Architects Co-Partnership were tasked with designing a new building at Sedgehill School in Lewisham,...
We were commissioned to design, manufacture and install three contrasting colour hypars, red, yellow and...
A twin coned tensile PVC fabric entrance canopy supported by a single steel mast at...
Riyadh is known for its expensive shopping and designer labels as much as it is...
We feel very fortunate to have been part of such a visionary design, and incredibly...
As part of the refurbishment of the Great Square at the British Museum, a new...
A unique bathing experience was what designers of David Lloyd Reading wanted to create for...
As part of the changes being made to the existing Alexander Stadium in order that...
Based in Espoo, close to Helsinki, Finland, the Nokia Headquarters is certainly one of the...
In a bid to liven up an otherwise mundane research centre, Architen Landrell was commissioned...
Architen Landrell fought hard to win the contract to install a series of fabric ceiling...
For a Ford showroom in Stevenage, Architen Landrell was asked to design, manufacture and install...
Ayr Central Shopping Centre, located in the heart of Ayr, Scotland, is undergoing a...
A collaboration of several European Companies, the Pusan Stadium in Korea was built for the...
In an Architects office in Chiswick, Architen Landrell won the contract to install a series...
With over twenty years of experience in the design, manufacture and installation of tensile fabric...
Lessons and breaks can spill outside at Cotham School due to the light-filled weather-proof space...
In an increasingly competitive market, retailers are always looking for ways to make their store...
David Morely Architects Water Polo arena is an entirely demountable structure featuring tensile fabric cushions...
In the centre of Alicante, Reid Fenwick Associates were tasked with the job of creating...
Phyllis Court, a place where “elegance and tradition blend seamlessly with modern requirements,” is known...
As part of the development of the 215 year old site, which once housed the...
At the heart of Soho on top of the luxury Ham Yard Hotel is a haven for...
North Lanarkshire Council approached Architen Landrell to supply a tender for the regeneration of Greenhill...
Marking the opening of a brand new pipeline delivering liquefied natural gas to the UK,...
Three Layer ETFE Cushion System for a new Tropical House attraction at Marwell Zoo. It...
The Royal Hall theatre in Harrogate, home of one of Englands last remaining ambulatories, has...
A series of canopies were designed into the public arenas making up the centre piece...
Architen Landrell was contracted to design and manufacture 238 triangular fabric hoods to cover the...
In line with the historical and modern presence of the Navy in Plymouth, architects of...
In the tropical climate of the Cayman Islands, the Cayman International School wanted to provide...
A set of six tensile fabric PVC white barrel vaults installed from the first floor...
The provision of a tensile fabric canopy enclosing a listed courtyard off Carnaby Street in...
It’s official – the inflatable fabric Disco Ball created for this year’s Bestival will go into the Guinness...
Opened in June 2016, the brand new Tate Modern Switch House houses some of the...
A concert tour by the Rolling Stones is guaranteed to be spectacular, and the recent...
A spacious, airy and modern facility was the brief when GF Tomlinson and Maber Architects...
The transparent glass pavilion at the Institute of Art & Design in Surrey provides the...
When the British Racing Drivers Club, owners of Silverstone Race Circuit, wanted to redesign their...
In a courtyard in central Earls Court, sculptural artist Diana Edmunds has installed a shocking...
The London Oratory School is undergoing a dramatic transformation. The main block of the school,...
Being local to the area, and having a number of rugby fans working on the...
Tensile fabric lends itself to the school environment as it provides a whole range of...
When international financial giant Reuters moved offices in 2005, it was keen to establish a...
The Imperium Building in Reading was undergoing a full internal refurbishment, including repositioning of the...
A solar glare problem within the reception area of BT’s Castle Wharf offices in Nottingham...
Vast atriums with glass ceilings look great but can suffer from solar glare and poor...
Architen Landrell were approached to assist the clients in an exciting, unique project for a...
The brief at the Earl Grey pub was simple: an attractive canopy to provide shelter...
As such a key venue in the Games it was essential that the maximum number...
Central feature for the 2001 Goodwood Festival celebrating 100 years of Mercedes Benz in Motor...
Considered one of the most accomplished non-state opera companies in the UK, Opera Holland Park...
Located at the heart of Manchester, the Festival Pavilion manufactured and installed by Architen Landrell...
Architen Landrell was awarded the contract for design, manufacture and installation of a barrel vaulted...
As part of a regeneration programme at Zvartnots airport Architen Landrell were awarded the contract...
A tailored PVC membrane sheaths the plywood shell of Will Alsop’s Information Pod in Cardiff...
Working as a subcontractor to Skanska, Architen Landrell was contracted to install a tensile fabric...
The worlds first mobile acoustic performance area has been created by new London Company Soundforms...
From the first sign that the Olympics were coming to London, the Architen Landrell team...
After a competitive tendering process, Architen Landrell were contracted to provide a 3 layer ETFE...
Keeping Cool with Floating Hypars & Screens Heralded as one of the most prestigious office...
In a call centre for a major internet banking company, staff were complaining that the...
When developers at Runshaw Sixth Form College wanted to cover a performance area in an...
The design and build of a tensile PTFE fabric atrium canopy at the entrance to...
A series of tensile PVC fabric inverted cones providing weather protection at a shopping precinct....
On a new site behind the Royal London Hospital in Whitechapel four quirky seminar pods...
The structure consists of a series of tubular steel arches supporting a tensioned PTFE-coated glass-fibre...
A dramatic and unusual installation for an urban school, the undulating Unity bridge is in...
Finalist: Construction News 2014 Project of the Year (between £10m – 50m) The busiest train station in...
Award Wining Design: IFAI Outstanding Achievement Award 2013: Tensile Structure <600m2 About the Project: Architen Landrell...
After originally installing a tensile amphitheatre canopy in Lackawanna County, Pennsylvania, in 2001, Architen Landrell...
Creating an upmarket champagne bar in the middle of the hustle and bustle of one...
Once the site of an abandoned fish market, the new £8m Northampton Bus Interchange is...
At a brand new secondary school in Swindon, Architen Landrell were approached to design, manufacture...
The new National Assembly of Wales building in Merthyr Tydfil, is one of a number...
When Hampshire County Cricket Club decided to redevelop their home ground, they opted for an...
Very few locations could be as high profile as Liverpool Lime Street, so when Land...
Architen Landrell were approached by London 2012 ceremonies in early June to submit quotation for...
Larmenier and Sacred Heart Primary School, is the amalgamation of separate junior and infant schools...
The stunning new £14.5M extension of the Serpentine Gallery opened its doors on 28 September....
When one of the countrys leading racecourses wanted to spruce up its outside space by...
Cottenham Village Colleges brand new sixth form centre is now the home to a beautiful...
This striking conversion of a Victorian school is undoubtedly one of the most ingenious and...
After a competitive tendering process where environental credentials, technical ability and speed of installation were...
Architen Landrell was approached by Canary Wharf Contractors Ltd to design, manufacture and install a...
When landscape architects Gustafson Porter conceived the idea for their Venice Biennale installation it was...
Division of space was handled with a delicate touch in glass mesh to define the...
With the successful launch of ‘Desperados’, a premium lager with a Mexican twist, it rapidly...
As part of the Paralympic Games Opening Ceremony, Architen Landrell were awarded the contract to...

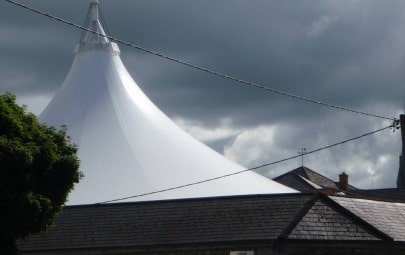

Once a hive of activity in the Irish part of Limerick, the city Milk Market...
