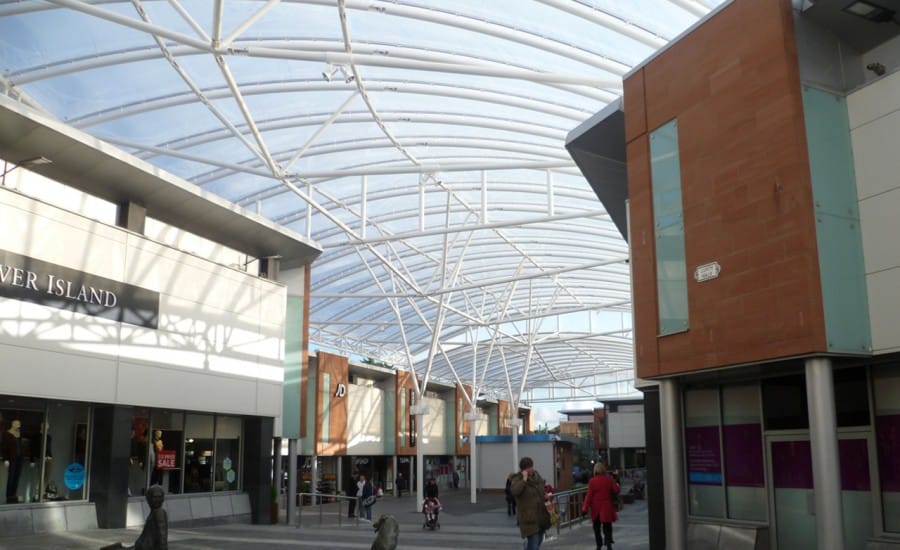

  • ETFE cushion canopy oversailing the shops at Ayr Central Shopping Centre, Ayr

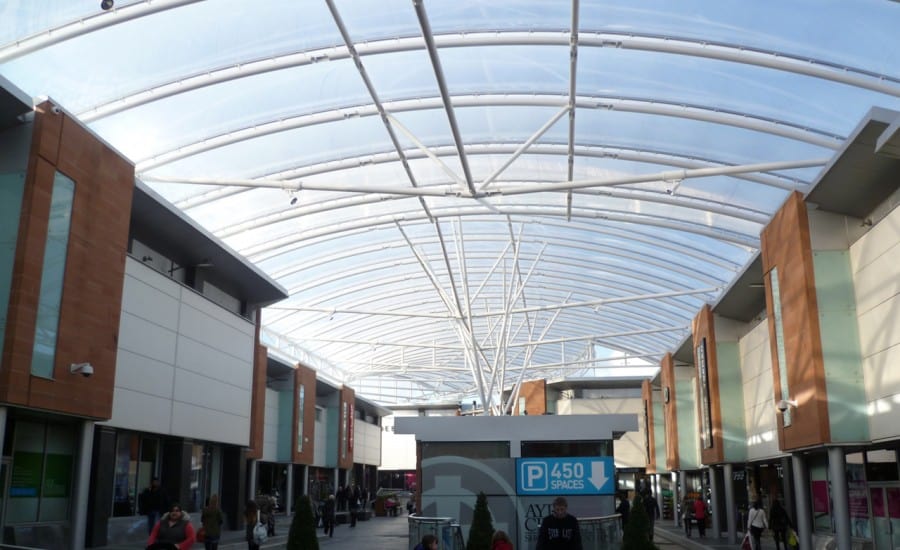

  • Air-filled ETFE cushions linking the buildings at Ayr Central Shopping Centre, Scotland

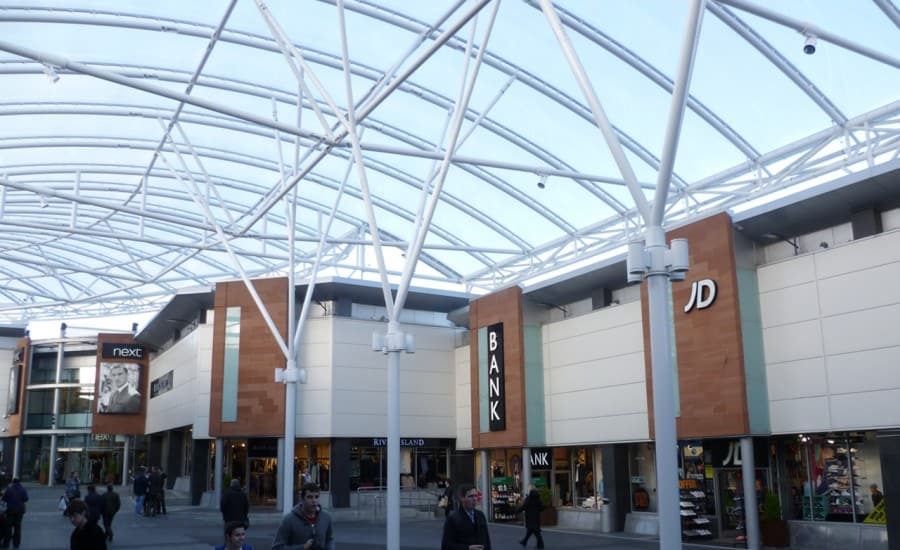

  • ETFE canopy giving shoppers a dry, daylit space at Ayr Central Shopping Centre, Ayr

ETFE Canopy: Ayr Central Shopping Centre

  • Attracting more shoppers
  • Dry space all year long
  • Maximising usable outdoor space



Ayr Central Shopping Centre, located in the heart of Ayr, Scotland, was transformed in 2014 with the addition of a bright ETFE roof. The new roof allows everyone to shop rain or shine, while enjoying fresh air and natural sunlight.

Designed by Leslie Jones Architecture, the roof is constructed of ETFE foils. ETFE stands for Ethylene Tetra Fluoro Ethylene its a fluorine based incredibly strong plastic. As one of the most desirable building features being used by architects today, ETFE can span large spaces at a fraction of the cost of glass.

Air Cushions:

Oversailing the shops, the ETFE canopy roof is comprised of two layers (an upper and a lower) forming a cushion. Cushions are filled with air, controlled and monitored by an air handling unit. This unit only needs to maintain pressure and not generate airflow which means minimal energy consumption.

In total, the roof comprises 34 horizontal air-filled cushions and 31 vertical air-filled cushions – offering 2,000m2 of coverage.

Engineered to Perform:

ETFE is 1% the weight of glass, yet it is engineered for heavy snow loads, wind and rain its a very durable building material, requiring minimal steel support.

Why ETFE:

ETFE was chosen because it is has a remarkable 80% light transmission, its 100% recyclable, cost effective, and requires minimal maintenance.

Architen Landrell realised Leslie Jones Architecture’s design, patterning, manufacturing and installing the roof in June 2014.

Thoughts from the Architect:

I have found the experience in working with Architen Landrell on Ayr Central Shopping Centre very good. The upfront and continued help throughout the design has been professional. Architen Landrell brought a wealth of expertise to the table during the inception and design development stages which contributed not only to the visual aspect and realisation of the concept design, but also to reducing the costs through rationalised detailing. Lee Pope, Associate, Leslie Jones Architecture
