  • PVC entrance canopy for school

Often used in a school environment, tensile fabric is a flexible material which offers a whole range of possibilities for designers of the school environment. So when ISG Jackson and Halliday Clark became involved in a complete re-design of the CTC Kingshurst Academy in Solihull, Birmingham, they looked at incorporating this exciting building material as an entrance canopy.

Originally Halliday Clark were interested in the pebble-like installation at Whitewater Shopping Centre, however, budget cuts and planning intervention meant that alternatives needed to be sought. With guidance from Architen Landrell, the architects decided to opt for two asymmetric inverted umbrellas, as found in our previous installations at Meadowhall Shopping Centre and the O2 Riverwalk.

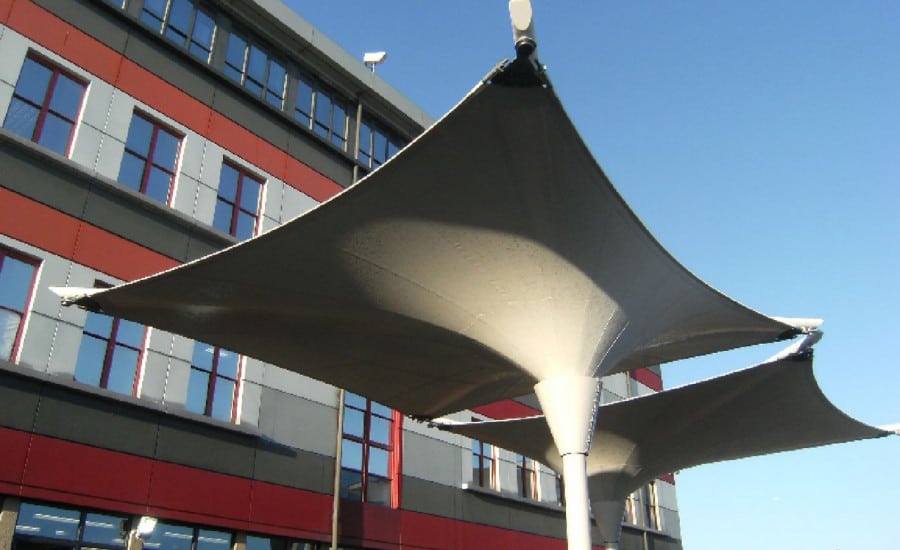

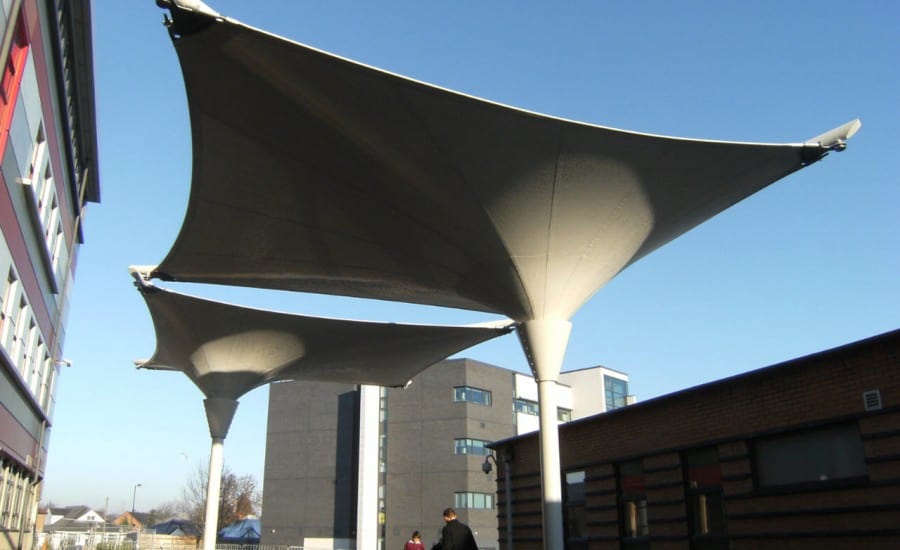

The two canopies both measure 6.5m x 6.5m with a column offset from the centre. Installed in opposing alignment but in a staggered configuration they form a covered entranceway to the school building.

Both canopies were manufactured from PVC coated polyester to meet both aesthetic and cost requirements and this also allowed a vinyl applied logo to be fixed to the front of one canopy to reflect the school branding.

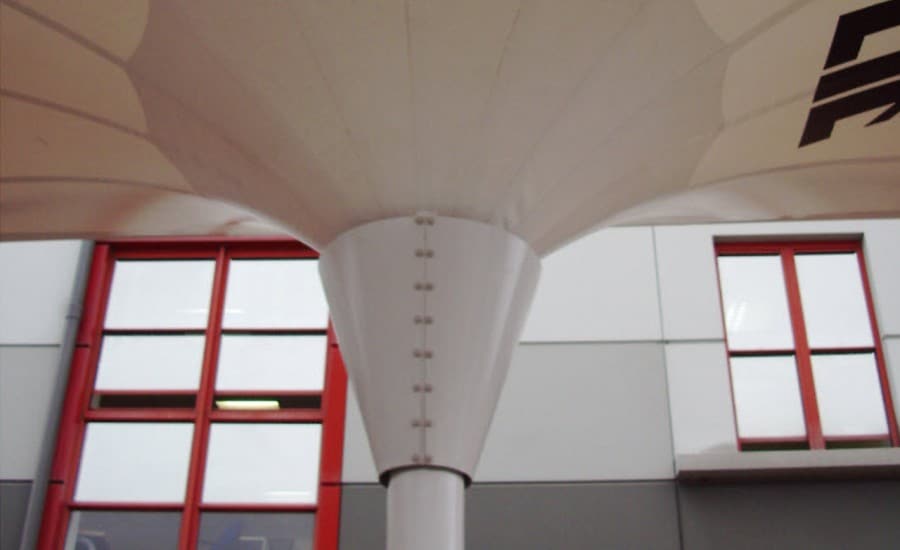

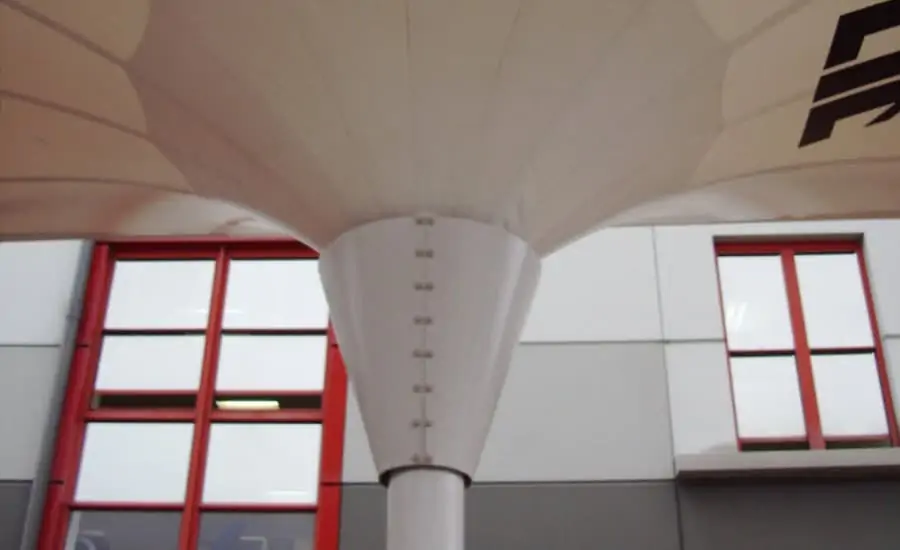

As is inherent with all inverted umbrella structures, drainage of rainwater needed to be carefully considered. Our standard water outlet design on this project posed a slight health and safety trip hazard, and as it was not possible to have the outlet underground, it was decided that a mouse hole outlet be designed into the columns which would allow the water to run straight into a drain adjacent to the structure.



Related Projects

Double conic fabric School canopy
Cambourne Village College

Cambourne Village College a state of the art new school designed by Architects Frank Shaw Associates Limited,...

Twin coned fabric canopy
Caleta Hotel

Owners of the Caleta Hotel in Gibraltar approached Architen Landrell to design, manufacture and install...

Lit fabric entrance canopy to hospital

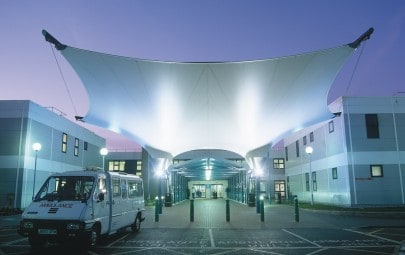

Queen Elizabeth Hospital
