  • Fully insulated tensile fabric structure
  • Fully insulated tensile fabric roof
  • Architectural tented factory roof

Design meets function. Beautifully formed insulated fabric roofs.

Long gone are the days when fabric structures were only used in large unheated spaces.  Thermal is a high-performance system capable of meeting the strict thermal values of a conventional insulated roof, while retaining the virtues of sculptural form and clear span spaces.

The technology behind Thermal is the use of multi-layers, ‘sandwiched’ together, forming the external envelope for virtually any building. The layers include: an outer membrane identical to a normal tensile roof; an insulated multi-foil membrane suspended beneath the outer layer; and a lightweight inner lining giving the system’s underside a smooth, elegant appearance.

By overcoming the thermal limitations usually associated with fabric, Thermal becomes viable as a building material in previously ‘off-limits’ areas to membrane construction. Thermal meets Part L and can achieve U-Values up to 0.18.


How to specify

Our products are easy to specify.  Drop this clause into your architectural specification or download our full H90 Specification.

Product: ARCHITEN THERMAL TENSILE FABRIC SYSTEM

System Manufacturer: Architen Landrell Manufacturing Limited

Size: As per architect’s drawings

Fabric:

– Outer Membrane:

– Thermal Membrane: Multi-foil Insulation

– Inner Membrane:

U-Value: 0.18 W/m2K

For more information on the fabric options which are compatible with this system, take a look at our Materials section. For bespoke projects or additional information, our experienced team will happily guide you through the specification of an Architen Thermal Tensile Fabric System.


Related Projects

Fabric structure at night
Serpentine Sackler Gallery

The stunning new £14.5M extension of the Serpentine Gallery opened its doors on 28 September....

Fully insulated fabric roof over services
Food Court, Chatham Maritime

Once a boiler shop in Chathams old dockyards, the grade two listed Chatham Maritime Shopping...

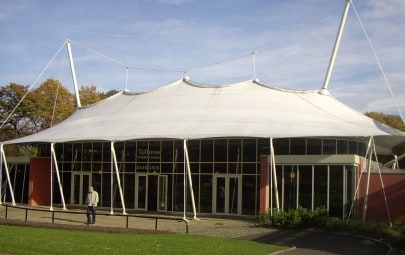

Tensile fabric roof canopy covering Orangery
